Precision Grinding & Honing Capabilities

At Rable Machine, we grind/hone a wide variety of machined parts and cylinders

Grinding is most commonly used when a material is too hard to machine efficiently or when the tolerances required are too precise for machining. Rable Machine's grinding capabilities including centerless grinding, through feed grinding, plunge form grinding, O.D. Grinding, I.D. grinding & honing and surface grinding.

Committed to providing our clients with only the most precision products and services, our grinding and honing capabilities meets ultra-tight tolerances, down to 0.0001", allowing us to produce parts with very fine finishes and extremely accurate dimensions. To better meet the needs of our clients, Rable Machine performs a broad variety of high-quality grinding services, including:

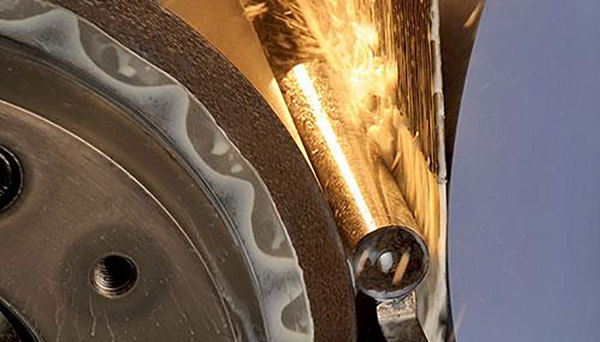

  • Centerless grinding
  • Thru-feed grinding
  • Plunge of form grinding
  • O.D. grinding
  • I.D. grinding
  • Surface grinding

Our grinding and honing equipment allows us to hold tolerances down to one micron and produce parts with extremely fine finishes and accurate dimensions.

  • We can grind and hone and bar stock up to three inches in diameter and 24 inches in length.
  • We can surface grind flat parts to 12" X 10"X12" holding fine finishes and close tolerances.
  • Our grinding expertise is supported by our ability to perform precision honing with our vertical honing machine with two independently programmable spindles. This piece of equipment has a bi-directional rotary table honing diameter range of 3-66 mm. It allows us to provide ultra precise honing on a wide variety of components.
  • One of Rable Machine's specialties is the grinding and honing of matched set spools and sleeves. Each set is tested with air gauges that are used to measure the I.D. of the sleeve and the O.D. of the spool and the actual clearance is marked clearly on each matched set. This kind of attention to detail makes Rable Machine the preferred choice for any project that involves matched sets of spools and sleeves.

 Sunnen SV-1005 Two Spindle Vertical Honing
This machine is equipped with a bi-directional Rotary Table Honing Diameter Range 3-65 MM (.120" - 2.560"), Two independently programmable spindles, Bore stroke length of 250 MM (9.8"), Coolant filtration system with paper media and magnetic drum Windows based PC with industrial touch screen panel.

Micro Precision Air Gauges
Air gauges are used to measure the ID of a Spool and the OD of a Sleeve. The Spool and Sleeve are packaged as a matched set with the actual clearance marked on the pack.

Precision Grinding & Honing Capabilities

Industry Focus

Agriculture
Air Conditioning / Compressor
Aircraft
Automation
Automotive
Banking
Construction
Defense
Heavy Equipment
HVAC
Medical
Motorcycle
Oil & Gas
Printing
Pump and Valve
Recreation
Telecommunications

Industry Standards

AS-Compliant - Aerospace Industry Standard
ISO-9001-2008 - Certified - International Organization for Standardization
Mil-Spec-Compliant - Military Specifications

Production Volume

High Volume
Large Run
Large Scale Production Volume Run
Long Run
Low Volume
Medium Run
Prototype
Short Run
Small Run
Specialty Production Shop

Process

Centreless grinding
Thru-feed grinding
Plunge of form grinding
O.D. grinding
I.D. grinding
Surface grinding
Honing

Additional Services

CAD Design
CAM
Q.C. Reports
Reverse Engineering
Spindle Grinding
Wheel Dressing

Material - Metals

Aluminum
Beryllium
Brass
Bronze
Cast Iron
Copper
Hastelloy
Inconel
Nickel
Stainless Steel
Steel
Tin
Titanium
Zinc


Flat Part Length

Max: 12 in

Flat Part Width

Max: 10 in

Flat Part Height

Max: 12 in

Cylindrical Part Diameter

Max: 3 in

Cylindrical Part Length

Max: 24 in

Roundness

Min: 0.0001 in

Concentricity

Min: 0.0001 in

Surface Finish

Min: 8 RMS µm

Tolerance (+/-)

0.0001 in
